EMM Electrolytic Manganese Metal Flakes
When sourcing critical raw materials for international metallurgy, processing efficiency relies directly on elemental purity. EMM Electrolytic Manganese Metal Flakes represent the premium technological choice for high-end ferrous and non-ferrous casting. As an established global metallurgical partner, ZhenAn provides optimized high-quality metal material distributions, ensuring your melting operations achieve minimal chemical inclusion levels and stable tap-to-tap consistency.
Core Structural Specifications

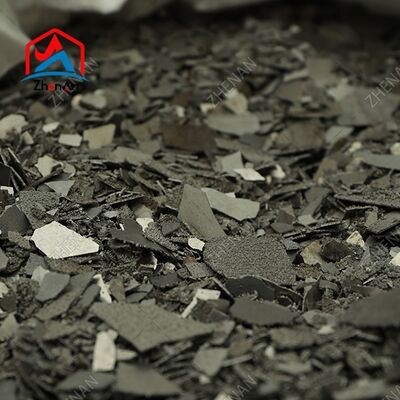

EMM Electrolytic Manganese Metal Flakes are flat, brittle crystalline sheets processed through advanced chemical leaching and electrolytic deposition. Classified as premium flake electrolytic manganese, these high purity manganese flakes feature a bright, metallic silver face on the smooth cathode contact zone and a dark matte grayish finish on the opposite side.
For modern engineering applications, this material acts as a foundational manganese alloy additive. Manufactured using an aqueous chemical sequence rather than pyrometallurgical reduction, it provides a stable Mn 99.7% minimum base, making it highly sought after by premium steel operations looking to bypass the structural hazards of high-carbon bulk ferroalloys.
Advanced Refining Process
To produce highly reliable metallurgical grade manganese flakes, professional refining systems implement a rigid, multi-stage electrochemical approach:
- Solution Leaching: Raw manganese oxide or carbonate ores are digested with hot sulfuric acid combined with ammonium sulfate buffer salts to generate a dense manganese sulfate solution
- Multi-Stage Impurity Precipitation: Soluble sulfide reagents and strict pH adjustments isolate and drop out trace contaminants, specifically targeting iron, copper, zinc, nickel, and cobalt ions
- Anodic Electrolysis: Highly purified aqueous solution transfers to diaphragm cells where electric current forces dissolved Mn²⁺ ions to deposit as solid metallic sheets onto specialized cathode blanks
- Finishing & Grading: Solid metal layers are mechanically stripped, thoroughly washed, vacuum dried, and crushed to meet global manganese flake size specifications
Chemical Composition Specifications
To achieve reliable compliance in specialized alloy manufacturing, each batch must match precise chemical composition specifications:
| Elemental Parameter |
Standard Grade (Mn99.7) |
Premium Low-Gas Grade (Mn99.8) |
| Manganese (Mn) Recovery Base ≥ |
99.70% |
99.80% |
| Carbon (C) Contamination ≤ |
0.04% |
0.01% |
| Sulfur (S) Interstitial ≤ |
0.03% |
0.02% |
| Phosphorus (P) Matrix ≤ |
0.005% |
0.003% |
| Iron (Fe) Accumulation ≤ |
0.02% |
0.01% |
| Silicon (Si) Residue ≤ |
0.01% |
0.005% |
Physical Specifications and Handling
Procurement departments must analyze mechanical layout elements to limit handling losses during shipping and feeding processes:
- Physical Dimensions: Flake thickness typically measures 1.0mm to 3.0mm, with irregular lateral sizing from 10mm to 40mm, ensuring clean dissolution kinetics without excessive airborne metallic fines
- Structural Brittleness: The crisp nature of manganese metal sheets/flakes ensures clean mechanical crushing, facilitating uniform automated weighing and batching operations
- Oxidation Protection: Premium flakes undergo precise surface passivation to block environmental moisture, protecting long-term elemental purity across extended marine freight lanes
Battery and Energy Sector Applications
While the steel sector remains a primary consumer, high-purity manganese metal raw material acts as a foundational chemical vector in high-growth battery manufacturing:
- Next-Generation EV Chemistries: Pure EMM flakes serve as key precursors for synthesizing battery-grade manganese sulfate, forming the active cathode core of high-energy NMC and lithium manganese iron phosphate (LMFP) batteries
- Electronic Oxide Ceramics: Used extensively to produce ultra-pure manganese oxides for soft ferrites, ensuring strict electromagnetic performance tolerances in modern power distribution systems
Technical Comparison: Manganese Metal vs Ferromanganese
| Structural Dimension |
Manganese Metal 99.7% (EMM) |
High-Carbon Ferromanganese (HCFeMn) |
| Pure Mn Weight Fraction |
≥ 99.7% |
65.0% - 78.0% Base |
| Carbon Impurity Level |
≤ 0.04% Max (Ultra-Low) |
6.0% - 8.0% (High Carbon Risk) |
| Companion Iron Load |
Negligible (≤ 0.02%) |
Balances to 100% (High Fe Carryover) |
Frequently Asked Questions
What are the main applications of electrolytic manganese metal flakes in alloy production?
Electrolytic manganese metal flakes are utilized across high-end metallurgical sectors to produce 200 and 300 series stainless steels, high-strength low-alloy structures, aircraft-grade aluminum components, and copper-bronze marine alloys. Its exceptionally high purity prevents trace elemental contamination, enabling precise compliance with strict engineering criteria.
How is EMM used in manganese alloy manufacturing?
In manganese alloy manufacturing, EMM flakes are introduced directly into liquid induction or electric arc furnaces during final alloy adjustment phases. Because it dissolves cleanly and quickly without leaving heavy residues, operators can hit tight elemental targets without triggering carbon or silicon spikes in the melt.
What advantages does electrolytic manganese offer compared with other manganese sources?
EMM provides clear chemical advantages over bulk ferroalloys by guaranteeing a Mn 99.7% Minimum threshold with exceptionally low levels of phosphorus, sulfur, and carbon. Unlike ferromanganese, it allows operators to add high concentrations of manganese without introducing unwanted companion iron, providing complete flexibility over the raw alloy balance.
How should buyers select suitable electrolytic manganese metal grades?
Buyers should match EMM grades directly to the purity tolerances of their final applications. For standard stainless steel production, standard 99.7% flakes provide excellent, cost-effective performance. For high-vacuum aerospace castings or premium lithium battery precursors, operators should specify low-gas or ultra-pure 99.8% grades from certified producers like ZhenAn.
